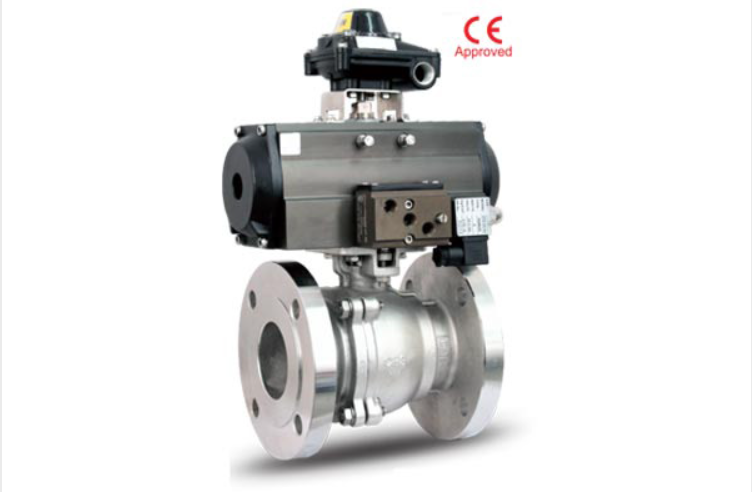

2 PC. Design “OKM” Floating Ball Valve

Description

“4Matic” Offers Pneumatic Actuator Operated Two Piece design Floating Ball Valve, Engineered for multiple On / Off operations in the down stream.

Size Range: 1/2″ to 10″ Flanged 150# / 300# / 600#

Standard

Design And Manufacturing: ASME B 16.34 / BS EN ISO 17292

Valve Face To Face Dimension: ASME B 16.10

Flange Standard Conformity: ASME B 16.5 Class 150 / 300

Inspection & Testing: API 598 / ISO – 5208 / BS EN 12266 – 1

Leakage Class: Class VI ISO – 5208

Accessories

• On / OFF Indicator

• NAMUR Standard Solenoid Valve in all Standard Coil Voltage (Flame Proof Solenoid Coil – On Request)

• Pneumatic & Electro-Pneumatic valve positioner

• Declutchable Manual Over – Ride

• Limit Switches for On / Off Indication at Panel Board

• Filter + Regulator Combination with Pressure Gauge

• Air Lock Valve
