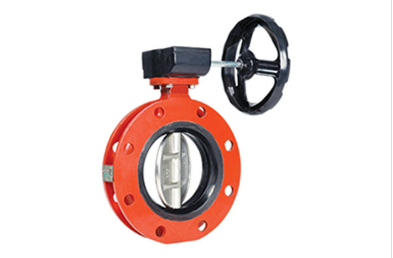

Flanged End Butterfly Valve

Description

• Integrally moulded seat liner on the body, which ensures excellent dimensional stability & guaranteed seat tightness.

• Seat liner extending on to the contact faces ensures perfect sealing and eliminates the need for separate flange gaskets.

• Narrow land disc ensures perfect sealing with least operating torque requirements. • A fully universal body design ensures fitting of the valve between companion flanges of all popular standards (viz: ANSI, BS, DIN,JIS, IS etc.)

• The notch disc & band lever ensures locking of the valve in 8 intermediate position in addition to close and open position. Hand lever can be locked through pad lock.

• Body casting made of superior FG 260 grade cast iron to ensure additional strength.

• Valve disc made of stainless steel / ductile cast iron which enable protection against possible water hammer or pressure surges.

• A truly line size body bone to ensure maximum flow capacity with the lowest pressure drop.
