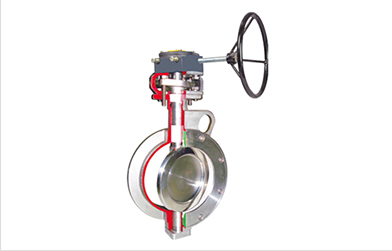

Metal Seated Butterfly Valve
Description
4Matic metal-seated butterfly valves are an optimal solution for flow control requirements in high-temperature applications. They are offered in a variety of metal seating options depending on the media and temperature requirements in the applications. These valves can be used in air, water, thermic fluid, hot oil, and steam applications.
- Size Range: 2″ to 18″ Standard
- Design and Manufacturing: API 609
- Valve Face to Face Dimensions: API 609 Category “B
- Top Flange Drilling: ASME B 16.5 Class 150
- Inspection and Testing: API 598
- Leakage Class: ASME B 16, 16.104 Leakage Class VI Pressure / Temperature Rating
- Pressure Rating: PN10
- Operating Temperature: -50°C TO +400°C
4M “SMT” Model Metal Seated Spherical Disc Valve
“4Matic” Handle & Gear Operated 4M SMT Model metal-to-metal replaceable seat design Spherical Disc Valve. Temperature up to 400 °C flat metal seat leakage Class VI.
- Size Range: 2″ to 18″
